CO 60.1

Code	CO 60.1

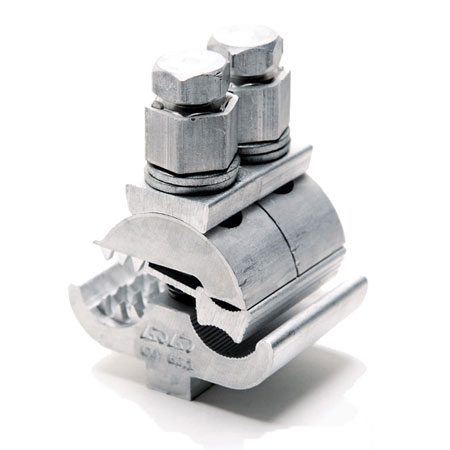

Name	Insulation piercing connector For Connecting the Bare conductors with covered conductors
Description	The connector CO 60.1 can be used for medium voltage covered conductor to bare conductor connections. The connector is watertight by silicone greased teeth and is equipped with shear head nuts.The connector CO 60.1 can be used for medium voltage covered conductor to bare conductor connections. The connector is watertight by silicone greased teeth and is equipped with shear head nuts.

Weight:

0.3 kg

Nominal voltage (Un):	12 … 36 kV
Covered conductor:	Al 35-157 mm²

Use:

The connector CO 60.1 can be used for medium voltage covered conductor to bare conductor connections.

Construction:

Component	Material
Body	Corrosion resistant aluminium alloy
Bolt	Hot-dip galvanised steel
Shear head	Aluminium alloy
End cap	UV resistance elastomer
Washers	Hot-dip galvanised steel
Conical washers	Stainless steel
Spring	Stainless spring steel

Installation:
Markings:	CO 60.1
