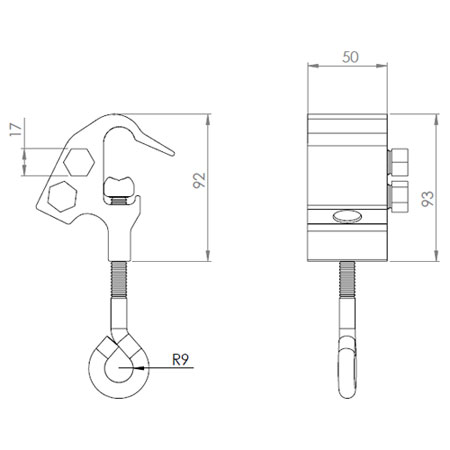

CO 75.1

Code	CO 75.1
Name	Live line connector
Description	CO 75.1 is used with bare conductors as a branching connector. With PAS lines, the branching connector is installed to the live line stirrup. The connector is of corrosion resistant aluminium and the bolts of stainless steel. With Cu-branch conductor, the sleeve CO 70.15 is used. The installation can be made with the live line rod. Live-line clamp is used for branching the line or connecting / disconnecting the transformer live. In CO 75.1 branching point is downwards.

Weight:

0.48 kg

Nominal voltage (Un):	12 … 36 kV
conductor mm²:	Al 25-150

Use:

Live-line clamp is used for branching the line or connecting / disconnecting the transformer live.

Construction:

The contact surfaces are brushed and greased to prevent oxidation.

Component	Material
Body	Corrosion resistant aluminium alloy, tensile strength 300 N/mm²
screws	Stainless steel and aluminium

Installation:	The live-line connector can be installed with standard live-line sticks. The screws have to be tightened to torque of 40 Nm (main) and 44 Nm (branch).
Markings:	CO 75.1
