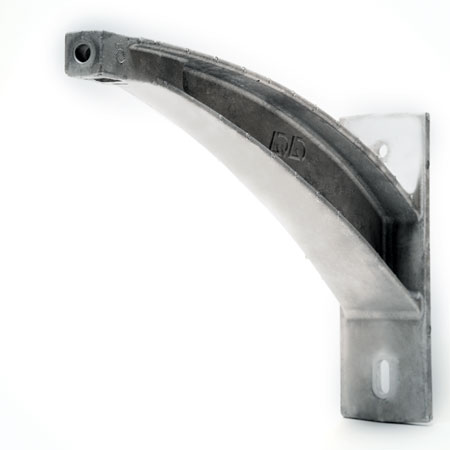

SB 22

Tangent brakets

Code SB 22
Name Tangent brakets
Description The SB 12 is tangent bracket designed fir use with spacer cable systems. The tangent bracket is supplied with a messenger clamp.
Pdf product card

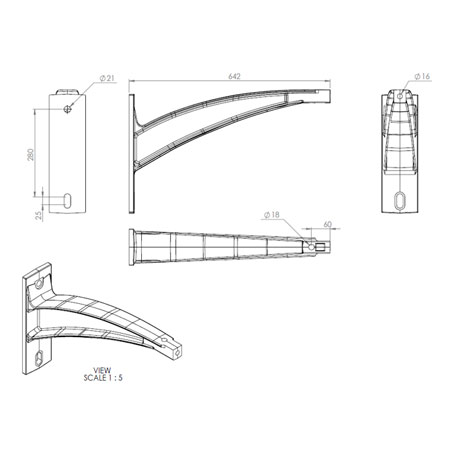

Dimensions

Dimensions: 142×98×215
Weight: 6.25 kg
Arm's Length: 60 cm

Specification

Use: SB 12 is designed to support the spacer cable messenger wire. It is used on tangent poles and line angles up 6°. Pole mounting is accomplished using either 5/8" or 3/4" thru-bolts (not included). Tangent bracket is designed for " back to back" double circuit costruction.
Construction: Mounting tangent brackets to flat surfaces shall be assembled with aluminum shim plates.
Installation:
Markings: SB 22
