SB 40
SB 40
Insulator arm
Code
SB 40
Name

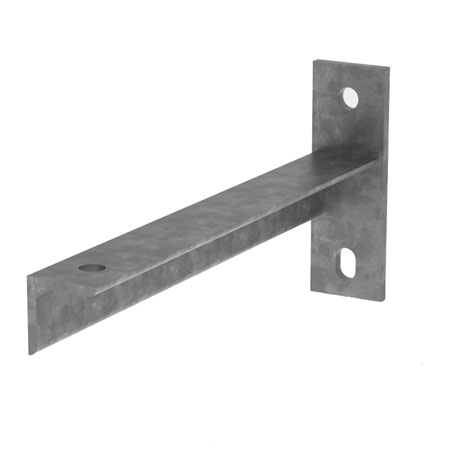

Insulator arm
Description
Insulator arm used to maintain a horizontal configuration of the conductors. The bracket is hot dip galvanized after fabrication. The welded gussets provide added strength to support larger size conductors.
Pdf product card
Technical information
Ducumentation
Related Product

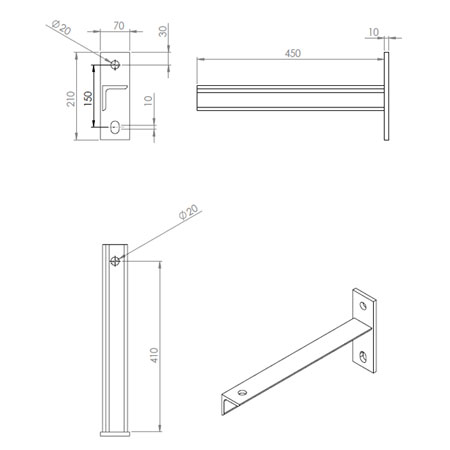

Dimensions
Dimensions:
70×460×210
Weight:
4.2 kg
Specification
Use:
The Insulator arm should be applied along with polyethylene insulators and covered tie wire or HPI Vise-Top Insulators.
Construction:
Hot-dip galvanised steel
Installation:
Markings:
SB 40
