SU 80
SU 80
Angle clamps
Code
SU 80
Name
Angle clamps
Description

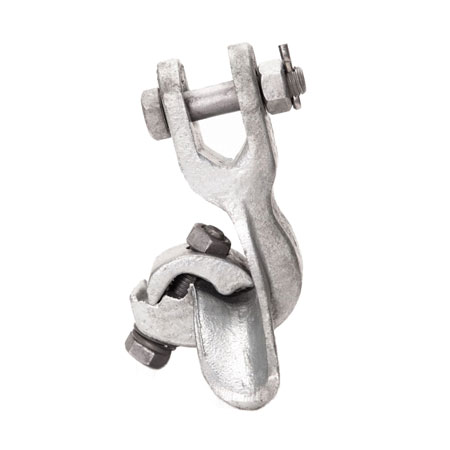

The SU 80 is messenger angle clamp used with spacer cable system. The clamp is cast ductile iron which is hot dip galvanized after fabrication.
Pdf product card
Technical information
Ducumentation
Related Product

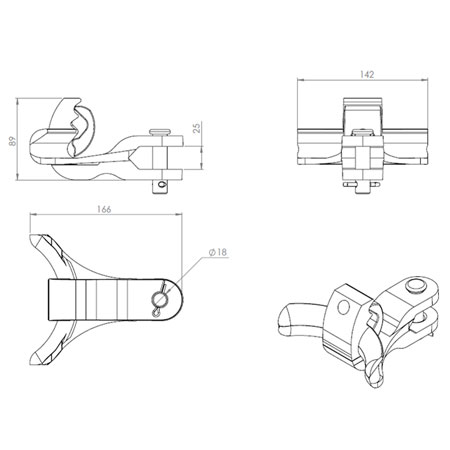

Dimensions
Dimensions:
110×167×142
Weight:
2.24 kg
Specification
Use:
The SU 80 clamp is designed for angles that pll towards the pole.
Construction:
Hot-dip galvanized pressed steel.
Installation:
The clamp should be attached to the angle bracket using a “U” bolt.
Markings:
SU 80
Name
Standards
Installation instructions
Catalog Pages
Certificates
