TI 60.1
TI 60.1

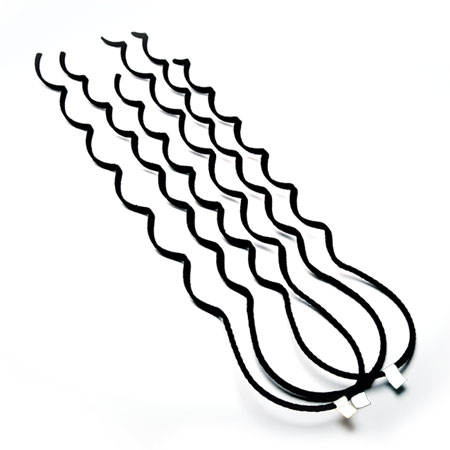

Helical tie (35-50)
Code
TI 60.1
Name
Helical tie (35-50)
For the silicon type of line post insulators
Description
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
Pdf product card
Technical information
Ducumentation
Related Product
Dimensions
Weight:
0.62 kg
Electrical values:
Nominal voltage (Un):
12 … 36 kV
Covered conductors:
35 … 50 mm²
Covered conductor diameter:
12_14
Specification
Use:
For binding the covered conductor on the insulator top groove or side groove.
Construction:
Plastic covered, zinc coated steel wire.
Installation:
Easy mounting without any special tools. Stripping of insulation is not necessary on covered conductors.
Markings:
TI 60.1
Name
Standards
Installation instructions
Catalog Pages
Certificates
Helical tie For ceramic pin insulators (35-70) TI 65.1
Helical tie For line post insulators (70-95) TI 60.2
Helical tie For ceramic pin insulators (70-95) TI 65.2
Helical tie For line post insulators (120-150) TI 60.3
Helical tie For ceramic pin insulators (120-150) TI 65.3
