TI 65.1

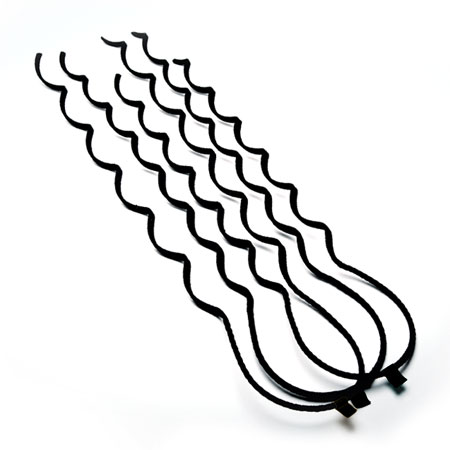

Helical tie (35-50)

Code	TI 65.1
Name	Helical tie (35-50) For the ceramic type of line post insulators
Description	Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.

Dimensions

Weight:

0.75 kg

Electrical values:

Nominal voltage (Un):	12 … 36 kV
Covered conductors:	35 … 50 mm²
Covered conductor diameter:	12_14

Specification

Use:	For binding the covered conductor on the insulator top groove or side groove.
Construction:	Plastic covered, zinc coated steel wire.

Installation:	Easy mounting without any special tools. Stripping of insulation is not necessary on covered conductors.
Markings:	TI 65.1
