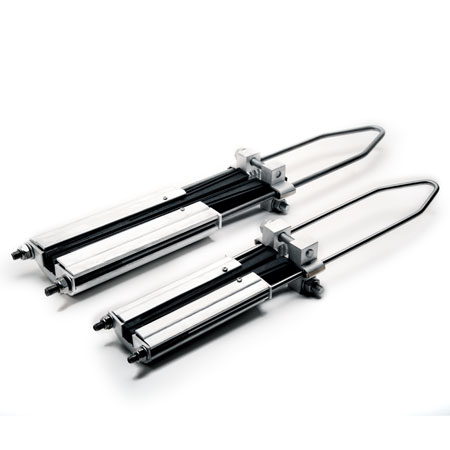

TE 50.1

Dimensions

Weight:

1.18 kg

---

Electrical values:

Nominal voltage (Un):	12 … 36 kV
Conductor diameter:	35 … 70 mm²

---

Specification

Use:	Tension clamp for bare conductors. Eg. Tension clamp for bare conductors as. Swan, Sparrow, Raven, Pigeon and AAC132
Construction:	The kit TE 50.1 consists of following parts
	Component Material Body Corrosion resistant aluminium alloy Plastic parts Frost, heat and UV-radiation resistant plastic Bolts Hot-dip galvanised steel Bail Stainless steel

---

Installation:	The clamp is opened and the conductor wire is inserted between the wedges. The locking connector is tightened. Tightening torque 40 Nm. The clamp is closed and strained.
Markings:	TE 50.1

---
