TE 70.1

Code	TE 70.1

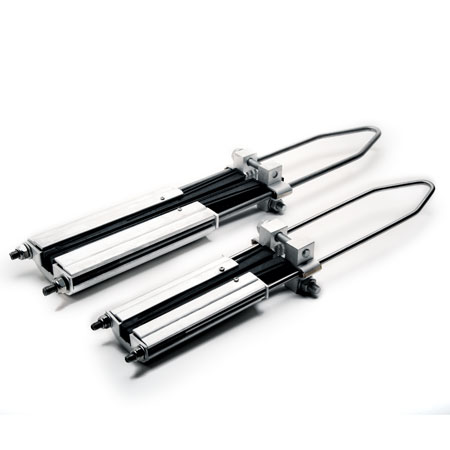

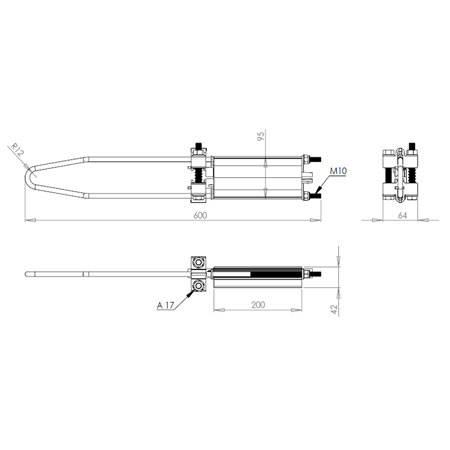

Name	Tension clamp (95 - 157) For tension insulators
Description	Tension clamp for bare conductors as. Swan, Sparrow, Raven, Pigeon and AAC132.

Weight:

2.26 kg

Nominal voltage (Un):	12 … 36 kV
Conductor diameter:	35 … 70 mm²

Use:

AR 60.1 is used as an arcing protection device for trnsion insulators.

Construction:

The kit TE 70.1 consists of following parts

Component	Material
Body	Corrosion resistant aluminium alloy
Plastic parts	Frost, heat and UV-radiation resistant plastic
Bolts	Hot-dip galvanised steel
Bail	Stainless steel

Installation:	The clamp is opened and the conductor wire is inserted between the wedges. The locking connector is tightened. Tightening torque 40 Nm. The clamp is closed and strained.
Markings:	TE 70.1

Tension clamp (35-70) TE50.1	Suspension clamp SU 60
